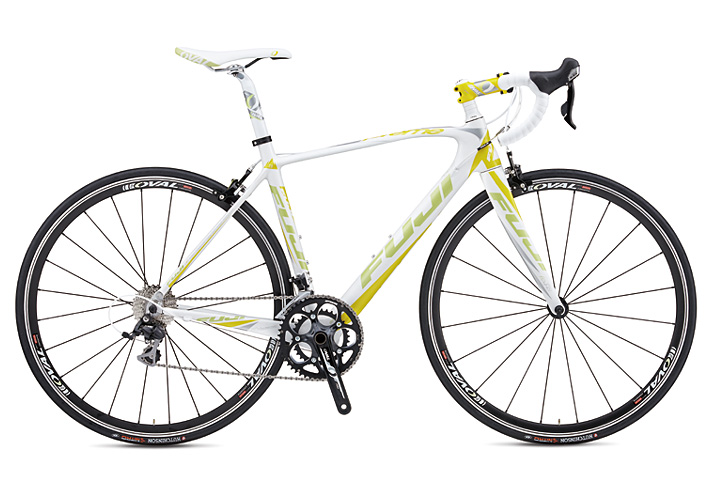

- SUPREME 2.0
- SSTのDNAを受け継ぐフルカーボンロードバイク。流麗で有機的なフレームデザインは、強化リブを施すことにより駆動系周りのフレーム剛性を高めているだけでなく、高弾性が特徴のD6カーボンの恩恵により様々なシーンで高い順応性を示し、ロングライドからレースまで幅広く対応。
スモールサイズが充実したジオメトリーで本格派の女性ライダーもサポート。 - Color(S)
- White/Green/Yellow
- Price
- (完成車)¥262,500(本体価格¥250,000)
- Size
- 44cm, 47cm, 50cm, 53cm
- Main frame
- D-6 high modulus carbon w/ RIB Tech, integrated head tube w/ 1 1/2” lower, aero seat tube, internal cable routing,oversized PIIS BB-86 shell, double water bottle mounts
- Fork
- FC-440 carbon monocoque w/ RIB Tech, tapered carbon steerer & carbon dropout
- Crankset
- Oval 700 forged alloy, 34/50T
- Bottom bracket
- Press-Fit BB86 sealed bearing
- Front derailleur
- Shimano 105, braze-on mount
- Rear derailleur
- Shimano 105, 10-speed
- Shifters
- Shimano 105 STI Shifter/brake combo, 20-speed Flight Deck compatible
- Cassette
- Shimano Tiagra, 12-28T 10-speed
- Wheelset
- Oval 330 aero alloy clincher, 30mm rims - 700c, DT Champion spokes, 20/24H, precision ground hubs
- Tires
- Hutchinson Nitro, 700x23c
- Brake set
- Oval 500 forged alloy dual pivot w/ cartridge pads
- Headset
- Oval 1 1/8”U - 1 1/2”L integrated w/ alloy top cover
- Handlebar
- Oval 300S double-butted 6061 alloy, 31.8mm
- Stem
- Oval 300 3D forged 6061 alloy, 31.8mm, +/-6 degree
- Saddle
- Oval 300 w/ steel rails
- Seat post
- Oval 300 alloy 2-bolt, 31.6mm
GEOMETRY
SIZE | 44cm | 47cm | 50cm | 53cm |
SEAT TUBE-CENTER TO TOP | 440 | 470 | 500 | 530 |
EFFECTIVE TOP TUBE LENGTH | 500 | 510 | 520 | 535 |
FORK OFFSET | 50 | 50 | 50 | 50 |
HEAD TUBE ANGLE | 70.5 | 70.5 | 70.5 | 70.5 |
SEAT TUBE ANGLE | 75 | 75 | 75 | 75 |
CHAIN STAY | 405 | 405 | 405 | 405 |
WHEELBASE | 969.2 | 971.25 | 973.4 | 979.4 |
HEAD TUBE LENGTH | 105 | 115 | 125 | 145 |
BOTTOM BRACKET HEIGHT | 261 | 261 | 264 | 264 |
BOTTOM BRACKET DROP | 7.3 | 7.3 | 7 | 7 |
STAND OVER HEIGHT | 713.24 | 733.88 | 751.52 | 775.48 |
CRANK LENGTH | 165 | 166 | 167 | 168 |
STEM LENGTH | 90 | 90 | 100 | 110 |
HANDLEBAR WIDTH | 380 | 380 | 400 | 400 |
